Wheel Axle Off Load Axle Weighing Scales , Portable Weighbridge Scales Strong Inner Structure

Name: Wheel Axle Off Load Axle Weighing Scales Portable Weighbridge Scales Strong Inner Structure
Brand: Pinglei
Price: 1 USD

Brand Name : Pinglei

Model Number : SCS

Certification : ISO9001

Place of Origin : HEBEI

MOQ : 1 Set

Price : negotiation

Supply Ability : 500 SETS PER WEEK

Delivery Time : 10 Days

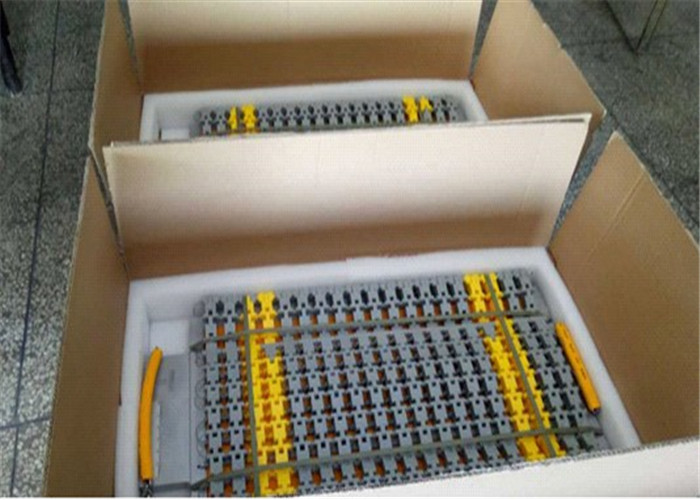

Packaging Details : PAPER CARTON

Type : Axle Scale

Rated Load : 40 ton

Transmistion mode : Wire and wireless

In-Motion Speed : <8km/h

In Motion Accuracy : 2%

Whole truck weight : ≤1000 T

Each Pad Dimension : 400x300x40mm(≤10T)

Overload protection : 120%

Contact Now

Portable Axle Weighbridge Wheel Axle Off Load Weighing Pads Scale

Advantages:

1. Super high intension aluminum alloy for aviation.
2. High accuracy load cells with protective foundation.
3. High quality military-level oxidation.
4. Stronger inner structure.

Features:

1. High intension aluminum alloy raw material, light to carry.
2. Load cell based weighing pads, very easy to maintain.
3. Normally used in car, small truck, van weighing, especially racing car balance checking and weighing.
4. Load cell based with high static weighing accuracy.
5. Smart to carry and easy to use. Light enough to carry two pads by one person.
6. OIML standard 100% overload protection.
7. OIML approved load cells.
8. Standard with powder coating surface and any color is optional.
9. Anodizing Aluminium treatment is optional and the surface would be more strong in anti-corrsion.
10. The dimension of pads, weighing capability and cable length are all customized in case of necessary.

Pad Dimension	Ramp Dimension	Max Axle Capability 2 pads (T)	Details
400x300x40mm	400x250mm	≤10	6 load cells (in 300x400 dimension, 4 load cells installed) In-Motion Speed:≤8km/h
400x5000x40mm	400x250mm	≤20
700x450x40mm	700x350mm	≤30
900x500x40mm	900x350mm	≤40

Weighing Capability	Wheel Weight ≤20 T			Temp. Compensation Range	-10~+50℃
	Axle Weight ≤40 T			Sensitive Influence by Temp.	0.1%/10℃
	Whole Truck Weight ≤ 1000 T (Maximum 7 axles per truck)			Zero Temperature Influence	0.1%/10℃
Static Accuracy	±0.07%	In-Motion Accuracy	±2%	Excitation Voltage	20V (DC)
Sensitive	1±0.2 MV/V	Non-linearity	≤0.10%	Insulation Resistance	≥5000 MΩ(100VDC)
Repeatability	≤0.01%FS	Zero Output	4~10%	Working Temperature	-40~+80℃
Input Impedance	120±10Ω	Output Impedance	110±10Ω	Overload Protection	120%
